BVT Clean Comfort
Turnable Wash & Dry Toilet
The BVT Clean Comfort is an integrated wash-and-dry toilet, with a rotating seat and support arms to expedite operation for users and caregivers.
It combines essential functionality with versatile installation, ensuring that assistive products can be both practical and stylish.
With its IPx5 water protection, it can be safely installed in wet environments, making it ideal for compact bathrooms and wet rooms.
Width incl. handles
640 mm
Height top edge seat
450 mm
Turning dia. (handles up)
Ø 805 mm
Turning dia. (handles down)
Ø 855 mm
Max. load
200 kg
Max. lifting capacity
300 kg
Max. load each handle
250 kg
| Title | File type | File size | |
|---|---|---|---|
|
|
Product sheet |
2 MB | |
|
|
Catalogue |
9 MB | |
|
|
User manual |
3 MB | |
|
|
Installation manual |
7 MB | |
|
|
FDV |
2 MB | |

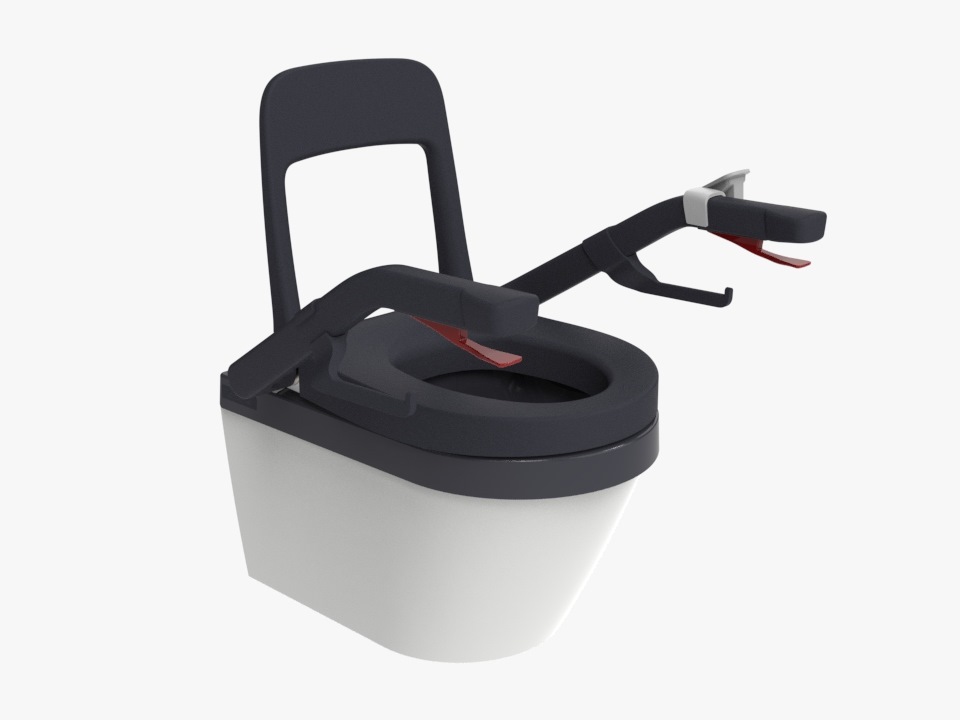

Turnable toilet
The toilet seat can easily be rotated using a trigger mechanism integrated in the support handles. The bars can be lowered and raised independently of each other. The back rest and toilet seat cover can easily be removed for cleaning.

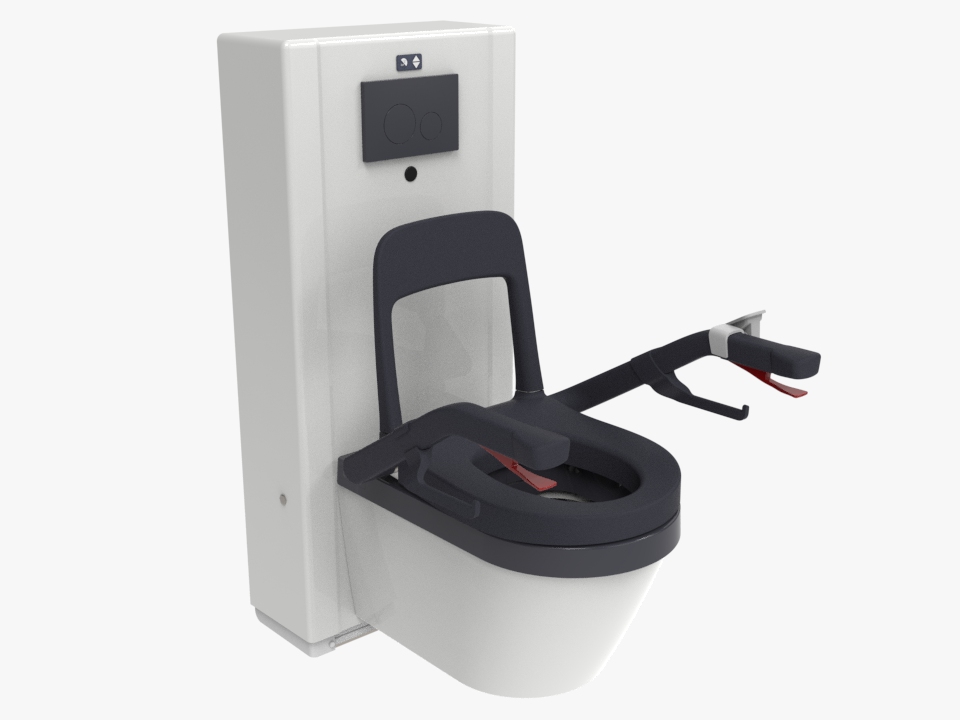

Height adjustable
Mobility-impaired users will be dependent on raising or lower the toilet, so that their legs are in contact with the floor and they can rotate the seat themselves safely. The toilet can be lowered and raised by 200 mm, and has a lifting capacity of 300 kg. The electrical height adjustment function is easily operated from a remote control or directly on the cistern. The control system for the height adjustment is integrated into the wall module. The module is flexible enough to be installed in existing bathrooms in which floor-mounted or wall-mounted toilets were previously installed.
Wash and dry function
The wash and dry function enables an even more comfortable and independent use of the toilet. It can easily be activated by the remote control, which starts the cleaning cycle with a gentle stream of warm water followed by the air dryer that dries at a comfortable temperature. The Water pressure as well as temperature are individually adjustable. A sensor in the cistern ensures that the function can only be released when a person is detected on the toilet.
Materials
Bano Turnable Toilet is made from robust materials that can withstand considerable loads and wear-&-tear. Innovative solutions provide optimum functionality and comfort. The porcelain toilet bowl is designed to be easy to clean.
All surfaces are made from innovative composite materials. This improves user comfort and provides a surface that adapts to the user´s body temperature. The toilet seat is designed with comfort and hygiene in mind.
The cistern is made from anti-corrosion steel with a vacuum-moulded composite cover.
